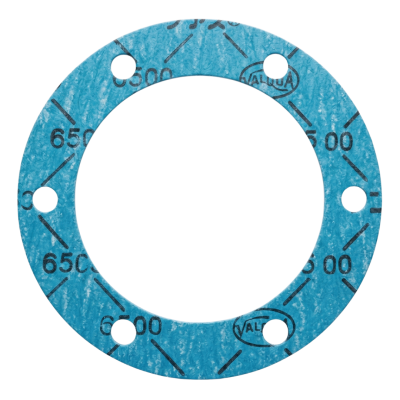

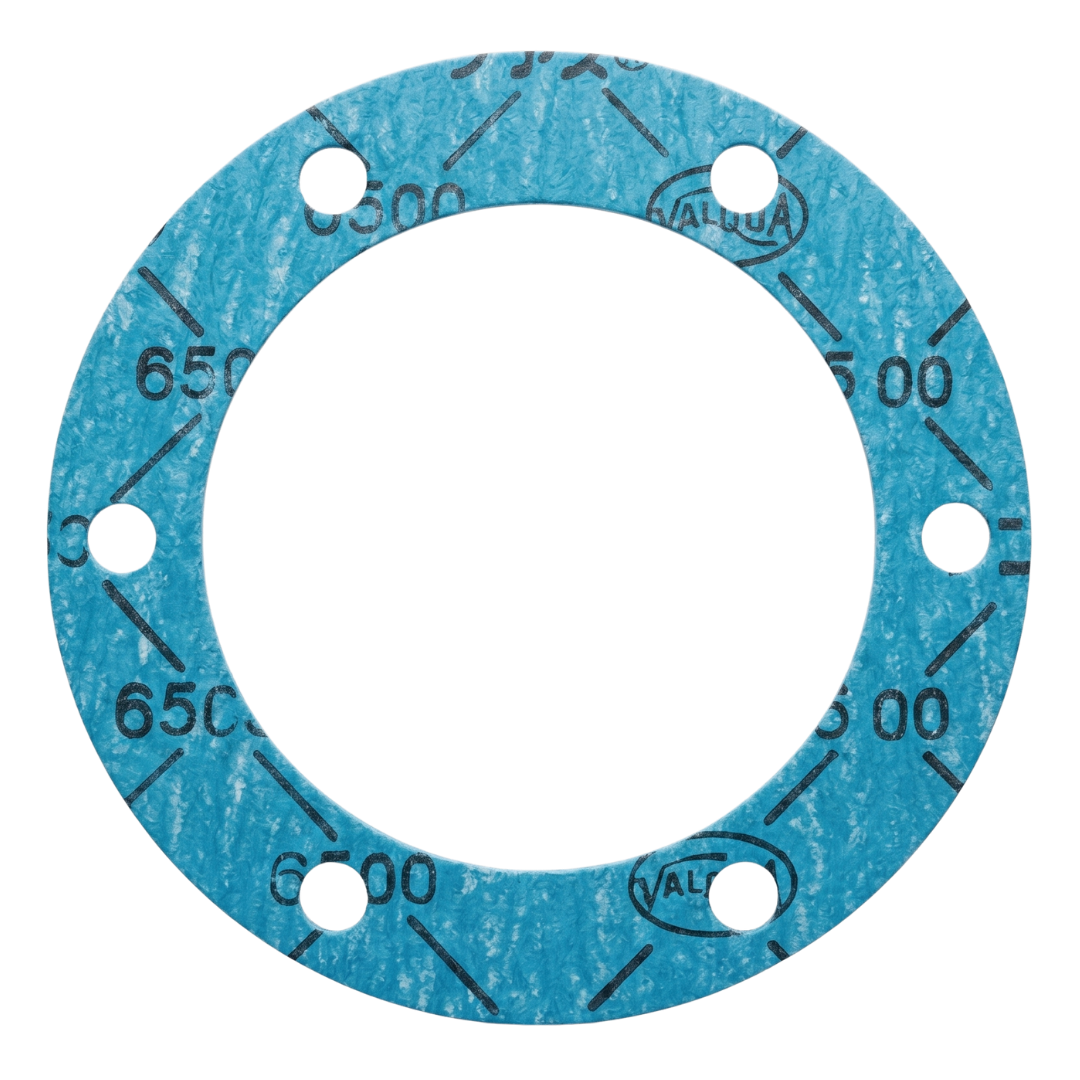

VALQUA No. 6500
Compressed Non-Asbestos Fiber Sheet for general use
Compressed Non-Asbestos Fiber Sheets are rolled and vulcanized sheet type gasket materials,
in which special rubber binders and a small amount of filler material are mixed with organic and inorganic fibers.
These are suitable to be used as Non-asbestos gaskets for pipe flanges and equipment in various industries.
The adaptability of these sheets for water apparatus has been confirmed based on JIS S 3200-7.

Description

• Unsuitable fluids: Strong acid, strong alkali, and various solvents, inflammable gas,
  gas susceptible to burn and toxic gas
• Applications: Pipe flanges, valve bonnets and other equipment used in various industries including oil
  refineries, chemical industries and shipyards
• Dimensions (Width × Length): 1270 × 1270, 1270 × 3810, 2540 × 3810, 3048 × 3810 mm
• Thickness: 0.4, 0.5, 0.8, 1.0, 1.5, 2.0, 3.0 mm
• Color: Blue

Recommended Tightening Stress
Note: Tightening stress is defined as the pressure required under standard conditions without consideration to the opening force due to internal fluid.

• Liquid Recommended tightening stress: 25.5 MPa
• Gas Recommended tightening stress: 40.0 MPa

Temperature and Pressure Classifications
Note: These classifications show individual service limits.

• Temperature: -50 ~ 183 °C
• Water based: 3.0 Pressure (MPa)
• Oil: 3.0 Pressure (MPa)
• Gas: 1.0 Pressure (MPa)
